Product Description
Click here to view our MD25X Brochure
Product Specifications
- Roll Diameter: 5"
- Belt Width: 36"
- Special Attributes: All
- Classification: Mine Duty CEMA C/D
- Special Attributes: Return
- Trough Angle (in degrees): Flat
Applications/Usage & Features
|

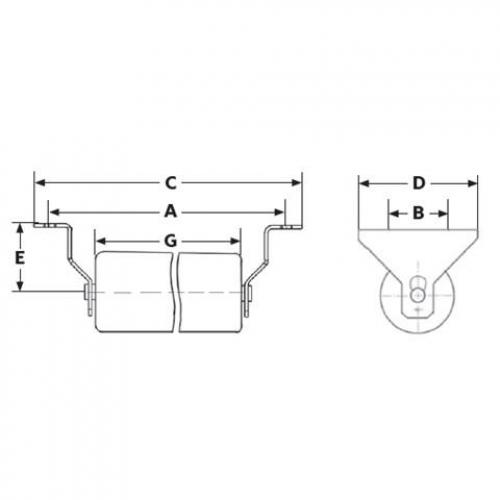

BELT WIDTH |
A |
B |
C |
E |
D |
G |
WT |
|
36 |
45 |
4 |
47 |
4 ½ |
8 |
39 3/8 |
42 |
|
36 |
45 |
4 |
47 |
1 ½ |
6 |
39 3/8 |
42 |
